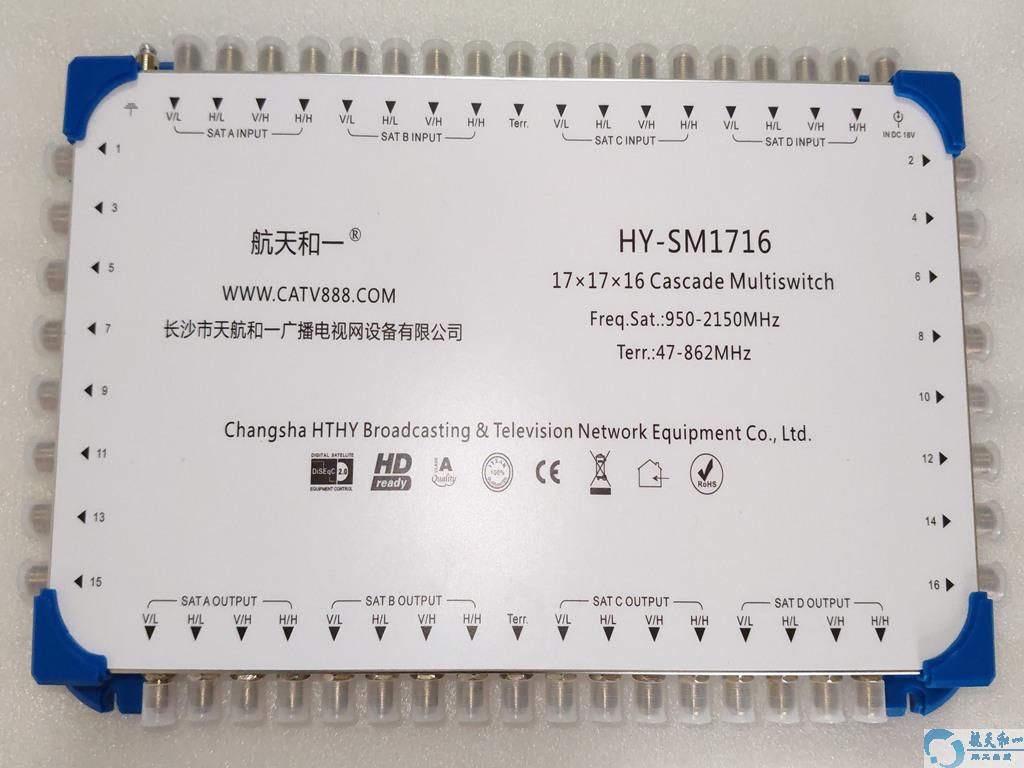

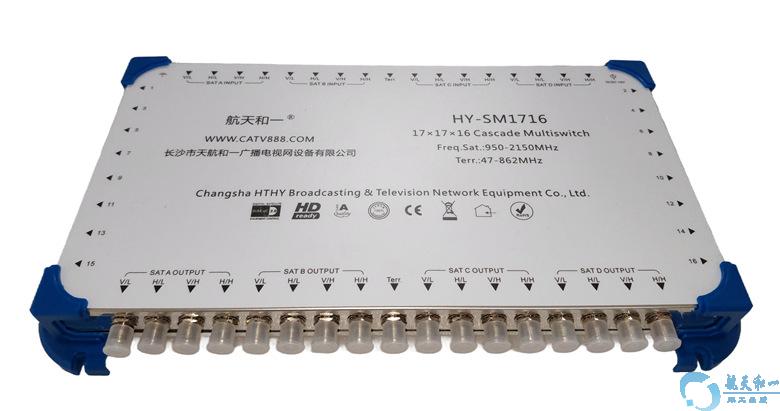

卫星多路矩阵开关放大器

SATELLITE SIGNAL MATRIX AMPLIFIER OF 17X17X16 （Multiswitch）

产品型号：HY-SM1716

产品特点：

优质马口铁外壳和精致的塑料外壳，安装方便。
优质组件，专业放大设计，低损耗
外部20V/2500mA直流电源，运行更稳定
通过13/18V、0-22KHz和DiSEqC 1.0/2.0命令选择SAT IF
可同时连接16个SATV信号、1个ANT信号或FM广播
支持16个SATV信号、1个ANT信号或与下一级的FM连接
支持接入16个卫星接收器

HY-SM1716 Features:

Excellent quality tinplate housing and exquisite plastic case shell attached, making installation convenient.
Excellent quality component, professional amplification design and low loss
An external 20V / 2500mA DC power offering more stable operation
SAT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands
Capable of connecting 16 SATV signals, 1 ANT signal or FM broadcast simultaneous
supports 16 SATV signals, 1 ANT signal or FM connect with next stage
Support access to 16 satellite receivers

产品技术参数：

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss SAT Inputs	10(dB)
Frequency Range SAT	950-2150(MHz)	Return Loss ANT Inputs	12(dB)
Insertion Loss ANT	5(dB)	Return Loss Output	8(dB)
Insertion Loss SAT	5(dB)	Output Level ANT	88(dBuV)
Direct loss ANT	4(dB)	Output Level SAT	100(dBuV)
Direct loss SAT	6(dB)	Normal Working Voltage	12-20(V)
Isolation In-In SAT	25(dB)	DC Power Consumption	200(mA)
Isolation In-In SAT/ANT	25(dB)	Supply Voltage(VDC)	20V(±1) 1200mA
Isolation Between Outputs	25(dB)	Temperature Range	-20°C-60°C
Switching Isolation SAT Inputs	28(dB)	Impedance(all ports)	75(Ω)
Cross Isolation	25(dB)
